Description

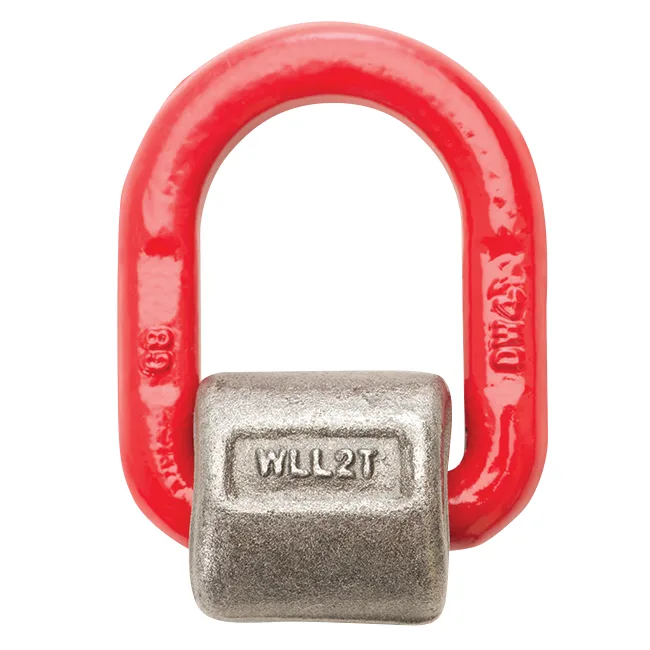

The Weld-On Pivoting D Link with Spring is a heavy-duty weld-on lashing point designed for securing loads on recovery vehicles, transporters, trailers, plant equipment, and commercial vehicles. Manufactured from high-strength Grade 80 alloy steel, this robust D-ring anchor point provides a reliable and secure attachment point for load restraint, recovery, and transportation applications.
Featuring an integrated spring-loaded mechanism, the D ring remains upright when required and returns neatly to its resting position when not in use. This provides better pivot control, reduces noise and vibration, and improves ease of use during vehicle loading and securing operations.
Each lashing ring is rigorously tested and manufactured to meet demanding industry standards, making it suitable for professional transport, recovery, and fleet operators.
Key Features
- Heavy-duty weld-on lashing ring
- Manufactured from Grade 80 alloy steel
- Integrated spring for improved pivoting control
- Ideal for trailers, recovery vehicles, transporters and plant equipment
- Working Load Limits from 1 tonne to 15 tonnes
- Fatigue Rated to 1.5 x WLL for 20,000 cycles
- Proof Tested to 2.5 x Working Load Limit
- 100% Magnaflux crack detected
- Safety Factor 4:1
- Durable red painted finish
- Conforms to EN 1677-1
- Suitable for professional load restraint and vehicle recovery applications

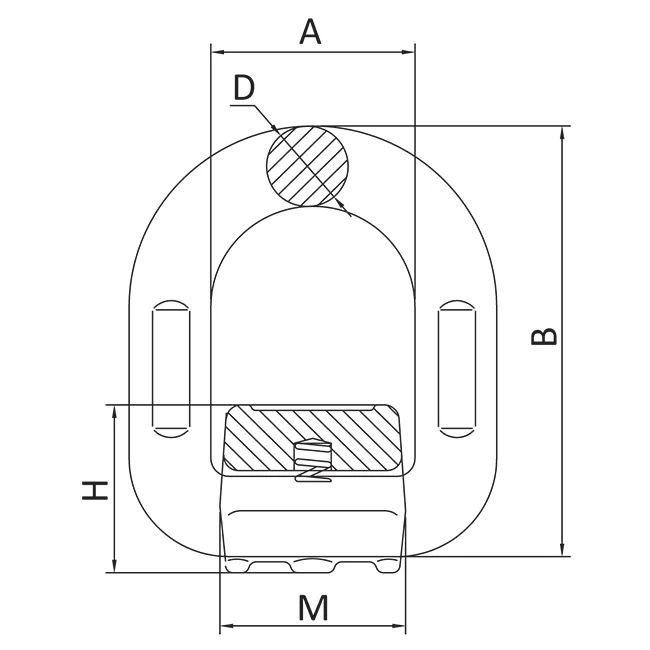

Available Sizes
| Load Rating | Internal Diameter (ID) | Cleat Width |
|---|---|---|
| 1 Tonne | 13mm | 37mm |
| 2 Tonne | 14mm | 40mm |
| 3 Tonne | 17mm | 43.5mm |
| 5 Tonne | 22mm | 50mm |
| 8 Tonne | 26.5mm | 66.5mm |
| 15 Tonne | 34mm | 90mm |
Ideal Applications
- Vehicle recovery trucks
- Car transporters
- Plant trailers
- Flatbed trailers
- Commercial vehicles
- Load securing systems
- Heavy-duty transport equipment
- Agricultural and construction machinery
Quality & Safety
Designed for demanding commercial environments, every weld-on D link undergoes stringent testing to ensure maximum reliability and long service life. The high-strength alloy steel construction delivers exceptional durability while maintaining a compact, low-profile design when not in use.
Important: Welding should only be carried out by a qualified welder. Always ensure the mounting structure is capable of supporting the intended load and never exceed the stated Working Load Limit (WLL).
